• Black painted steel front bumper w/grained mold-in-color top cover-inc: bumper extenders & black front fender moldings
• Black painted rear bumper
• Black box-rail & tailgate top-edge moldings
• Molded black cab steps
• Black painted grille
• Winter front grill cover *Standard in AK, CO, ID, IA, ME, MI, MN, MT, NH, NY, ND, SD, VT, WI, WY*
• Sealed beam halogen headlamps
• Pickup box/cargo lights
• Roof marker & clearance lights
• Manually telescoping & folding manual trailer tow mirrors
• Black door handles
• Solar tinted glass
• Interval windshield wipers
• Front license plate bracket *Standard in states where required. Optional in all other states.*
• Rear license plate bracket
• Removable locking tailgate w/black handle & Tailgate Assist

• HD vinyl front bench seat w/recline-inc: armrest, cupholders
• Forward-folding vinyl rear bench seat
• Black vinyl floor covering
• Color-keyed scuff plates
• Turbo boost gauge & air filter minder
• AM/FM stereo-inc: digital clock, (2) speakers
• (4) air registers w/positive shut-off
• Auxiliary pwr point
• Dash-top tray
• Glove box
• Ashtray & cigar lighter
• Color-keyed molded door trim panel-inc: hard armrest, grab handle, reflector
• Color-keyed cloth headliner
• Front passenger-side roof ride handle
• Rear seating roof ride handles
• Driver & passenger grab handles
• Rear seat LH/RH grab handles
• Front door operated dome lamp w/time delay off & IP switch
• Front/rear map lamps
• Dual color-keyed cloth sunvisors-inc: driver-side pocket, passenger-side mirror insert
• Dual color-keyed coat hooks

• 4-wheel anti-lock braking system (ABS)
• Driver & front passenger airbags
• Color-keyed safety belts w/front seat outboard height adjustable D-rings
• BeltMinder seatbelt-not-buckled chime & flashing warning light
• Child seat tethers on all rear passenger seats

Additional Packages

• -

• GVWR: 14,500 lbs Payload Package
• AM/FM radio
• Power steering
• 4-Wheel Disc Brakes
• ABS brakes
• Dual front impact airbags
• Front anti-roll bar
• Rear anti-roll bar
• Dual rear wheels
• Rear step bumper
• Front reading lights
• Passenger vanity mirror
• Rear reading lights
• Tachometer
• Trip computer
• Voltmeter
• 19.5" Forged Polished Aluminum Wheels
• Alloy wheels
• Variably intermittent wipers
• Limited Slip w/4.30 Rear Axle Ratio

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 750
• Cold Cranking Amps @ 0° F (2nd): 750
• Maximum Alternator Capacity (amps): Dual 160
• Maximum Alternator Capacity (amps): 200
• Maximum Alternator Capacity (amps): HD 200
• Maximum Alternator Capacity (amps): HD 135
• Maximum Alternator Watts: - TBD -
• Cooling System
• Total Cooling System Capacity (qts): - TBD -
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 4850
• Gross Axle Wt Rating - Front (lbs): 5000
• Gross Axle Wt Rating - Front (lbs): 4700
• Gross Axle Wt Rating - Rear (lbs): 5600
• Curb Weight - Front (lbs): 4723
• Curb Weight - Rear (lbs): 3567
• Gross Vehicle Weight Rating Cap (lbs): 14500
• Gross Combined Wt Rating (lbs): 33000
• Gross Combined Wt Rating (lbs): 28000
• Gross Combined Wt Rating (lbs): 27000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 16000
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 2400
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 20500
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 19500
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 24500
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 18500
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 5125
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 4875
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 6125
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 4625
• Suspension
• Suspension Type - Front: Coil
• Suspension Type - Rear: - TBD -
• Spring Capacity - Front (lbs): 6000
• Spring Capacity - Front (lbs): 5600
• Spring Capacity - Rear (lbs): - TBD -
• Axle Type - Front: Dana Monobeam
• Axle Type - Rear: Dana Full-Floating
• Axle Capacity - Front (lbs): 7000
• Axle Capacity - Rear (lbs): 11000
• Axle Ratio (:1) - Rear: 4.88
• Axle Ratio (:1) - Rear: 4.30
• Shock Absorber Diameter - Front (mm): 35
• Shock Absorber Diameter - Rear (mm): 35
• Stabilizer Bar Diameter - Front (in): - TBD -
• Stabilizer Bar Diameter - Rear (in): - TBD -
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 14.53 x 0.47
• Rear Brake Rotor Diam x Thickness (in): 15.35 x 0.47
• Tires
• Front Tire Order Code: TFB
• Rear Tire Order Code: TFB
• Spare Tire Order Code: - TBD -
• Front Tire Size: 225/70R19.5G
• Rear Tire Size: 225/70R19.5G
• Spare Tire Size: - TBD -
• Front Tire Capacity (lbs): 3415
• Rear Tire Capacity (lbs): 3415
• Spare Tire Capacity (lbs): 3415
• Revolutions/Mile @ 45 mph - Front: 654
• Revolutions/Mile @ 45 mph - Front: 646
• Revolutions/Mile @ 45 mph - Rear: 654
• Revolutions/Mile @ 45 mph - Rear: 646
• Revolutions/Mile @ 45 mph - Spare: 654
• Revolutions/Mile @ 45 mph - Spare: 643
• Wheels
• Front Wheel Size (in): 19.5 x 6.0
• Rear Wheel Size (in): 19.5 x 6.0
• Spare Wheel Size (in): - TBD -
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Spare Wheel Material: - TBD -
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: 18.0
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 49.5
• Turning Diameter - Wall to Wall (ft): - TBD -
• Frame
• Frame Type: Ladder-Type
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 38
• Fuel Tank Location: Midship
• Exterior Dimensions
• Wheelbase (in): 172.4
• Length, Overall w/o rear bumper (in): 262.4
• Width, Max w/o mirrors (in): 95.5
• Height, Overall (in): - TBD -
• Height, Overall (in): 79.8
• Overhang, Front (in): 37.6
• Overhang, Rear w/o bumper (in): 52.4
• Front Bumper to Back of Cab (in): 154.3
• Cab to Axle (in): 56.3
• Cab to End of Frame (in): 96.6
• Ground to Top of Load Floor (in): 35.6
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): 36.5
• Ground Clearance, Front (in): - TBD -
• Ground Clearance, Rear (in): 7.8
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 98.0
• Cargo Box Width @ Top, Rear (in): 63.6
• Cargo Box Width @ Floor (in): - TBD -
• Cargo Box Width @ Wheelhousings (in): 50.9
• Cargo Box (Area) Height (in): 20.0
• Tailgate Width (in): 60.6
• Cargo Volume (ft³): 77.4
• Interior Dimensions
• Passenger Capacity: 5
• Passenger Capacity: 6
• Front Head Room (in): - TBD -
• Front Leg Room (in): - TBD -
• Front Shoulder Room (in): - TBD -
• Front Hip Room (in): - TBD -
• Second Head Room (in): - TBD -
• Second Leg Room (in): - TBD -
• Second Shoulder Room (in): - TBD -
• Second Hip Room (in): - TBD -
• Summary

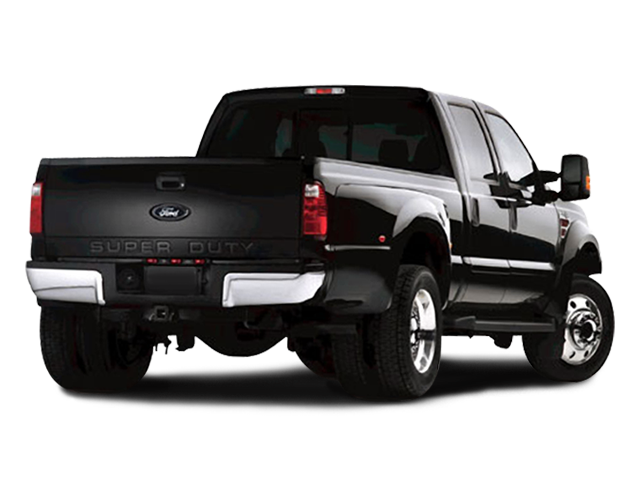

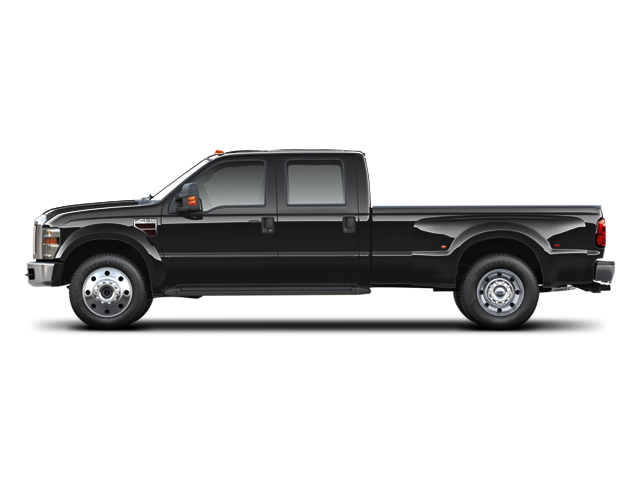

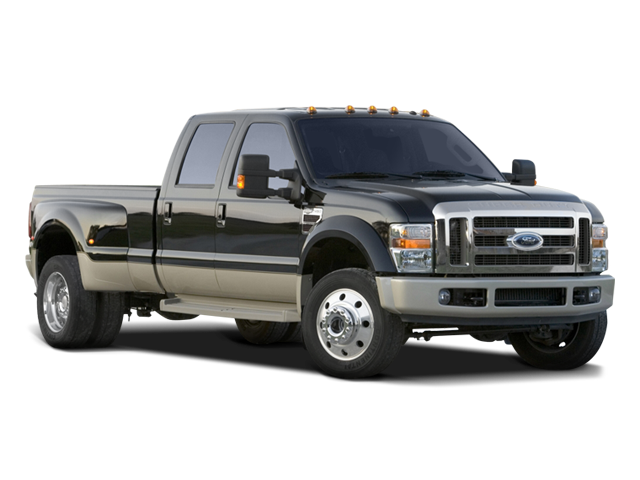

• Vehicle Name: Ford Super Duty F-450 DRW
• Body Style: Crew Cab 8'
• Body Code: 172" WB
